Tag Archives: library

Class Not Found exception while deploying the application

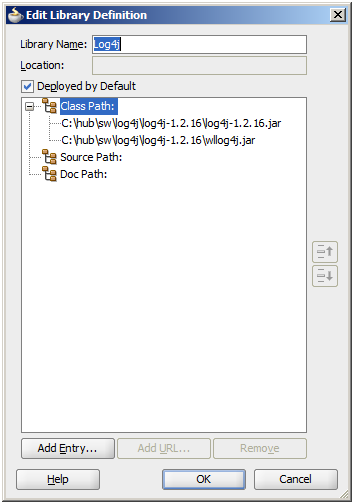

If you are getting class not found exception for a particular library upon deploying the application then check If the ‘Deploy by default’ option is checked for the library in your application.

If the library is referred in the Weblogic-application.xml then make sure that the library has to be deployed to the server. This will be referred in you Weblogic-application.xml as


Configure Hibernate for Jdeveloper

Here is the way to configure hibernate to work on JDeveloper

First thing first

As you know the three main things in setting up any hibernate is to have

  • Reference to hibernate3.jar library in classpath
  • Having hibernate.cfg.xml file (can be done programmatic way as well)
  • The mapping file (eg. Simple.hbm.xml)

To make this work for JDeveloper, download the latest version of hibernate3

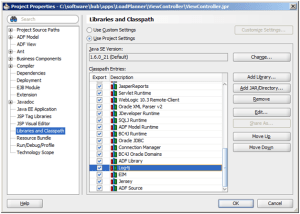

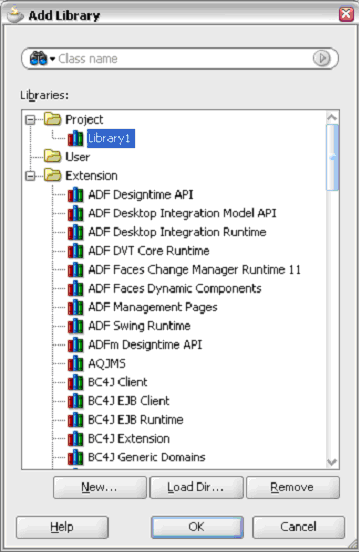

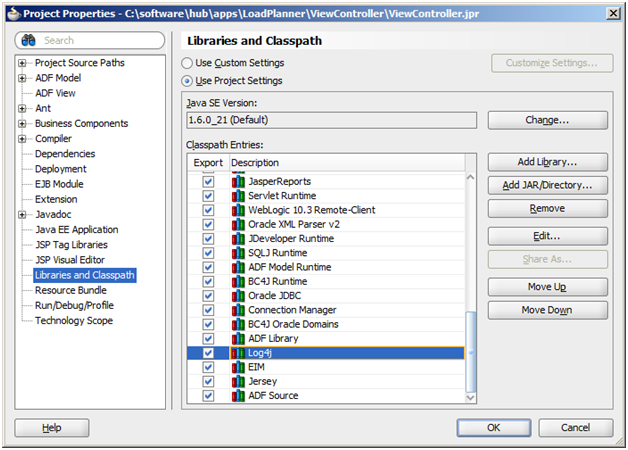

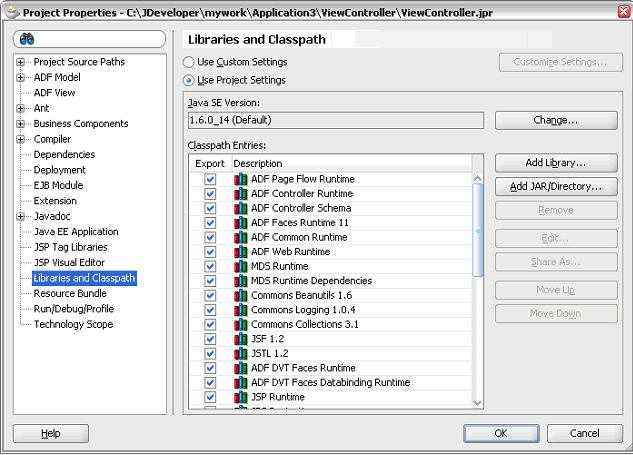

Refer the downloaded location in the projects library and classpath by Adding a Library(Add Library)  – Create New – Add Entry

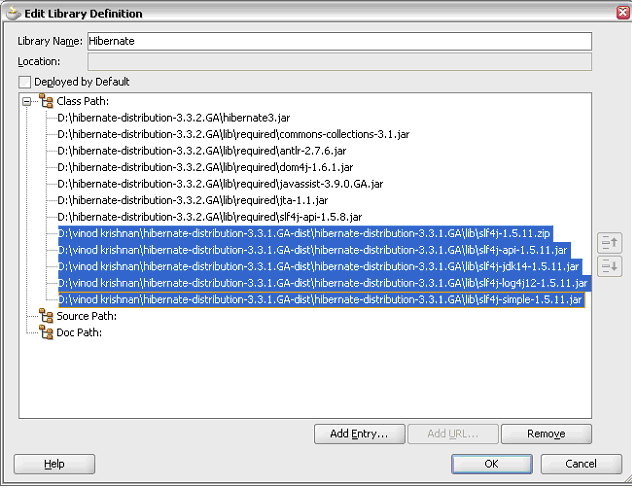

Provide the Library Name as ‘Hibernate’ (can be of your choice) and add the following libraries

  • hibernate3.jar
  • antlr-2.7.6.jar
  • commons-collections-3.1.jar
  • dom4j-1.6.1.jar
  • javassist-3.4.GA.jar
  • jta-1.1.jar
  • slf4j-api-1.5.2.jar

Have the hibernate.cfg.xml file in your current working directory

<?xml version='1.0' encoding='utf-8'?>

<!--<span class="hiddenSpellError" pre=""-->DOCTYPE hibernate-configuration PUBLIC

"-//Hibernate/Hibernate Configuration DTD 3.0//EN"




<!-- Database connection settings -->





<property name="connection.username">system</property>

<property name="connection.password">fusion</property>

<!-- <span class="hiddenSpellError" pre="">JDBC</span> connection pool (use the built-in) -->

<property name="connection.pool_size">1</property>

<!-- SQL dialect -->



<!-- Enable Hibernate's automatic session context management




<!-- Disable the second-level cache -->




<!-- Echo all executed SQL to <span class="hiddenSpellError" pre="to ">stdout</span> -->

<property name="show_sql">true</property>

<!-- Drop and re-create the database schema on startup -->

<property name="hbm2ddl.auto">create</property>

<mapping resource="Simple.hbm.xml"/>



The configuration file is for Oracle driver.. this can be changed





<property name="connection.username">system</property>

<property name="connection.password">fusion</property>

You have to specify the mapping file also

<mapping resource="Simple.hbm.xml"/>

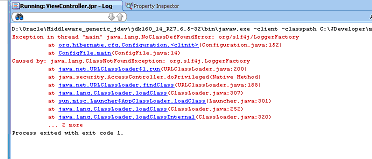

the highlighted libraries are added from slf4j to overcome

As the final step, represent the db table of yours as a simple pojo class (Simple.java) like

public class Simple {

private Long id;

private String title;

private Date date;

public Simple() {}

public Long getId() {

return id;


private void setId(Long id) {

this.id = id;


public Date getDate() {

return date;


public void setDate(Date date) {

this.date = date;


public String getTitle() {

return title;


public void setTitle(String title) {

this.title = title;


private Set participants = new HashSet();

public Set getParticipants() {

return participants;


public void setParticipants(Set participants) {

this.participants = participants;



where id, title and date represents the column name of the table in the db

Have a corresponding mapping file in the same qualified path (Simple.hbm.xml)

<?xml version="1.0"?>

<!--<span class="hiddenSpellError" pre=""-->DOCTYPE hibernate-mapping PUBLIC

"-//Hibernate/Hibernate Mapping DTD 3.0//EN"



<class table="EVENTS">

<id name="id" column="EVENT_ID">



<property name="date" column="EVENT_DATE"/>

<property name="title"/>



Have a configFile.java where you instantiate the Configuration, Session and get involved in the transaction

import org.hibernate.Session;

import org.hibernate.SessionFactory;

import org.hibernate.cfg.Configuration;

public class ConfigFile {

static Session session;

public ConfigFile() {



public static void main(String[] args){

Configuration cfg = new Configuration().configure();

SessionFactory sessions = cfg.buildSessionFactory();

Session sess = sessions.openSession();

session = sess;

Simple s = new Simple();





Run the configFile.java.. that’s it. 🙂

ADF Library

How normal jar library is different from ADF Library?

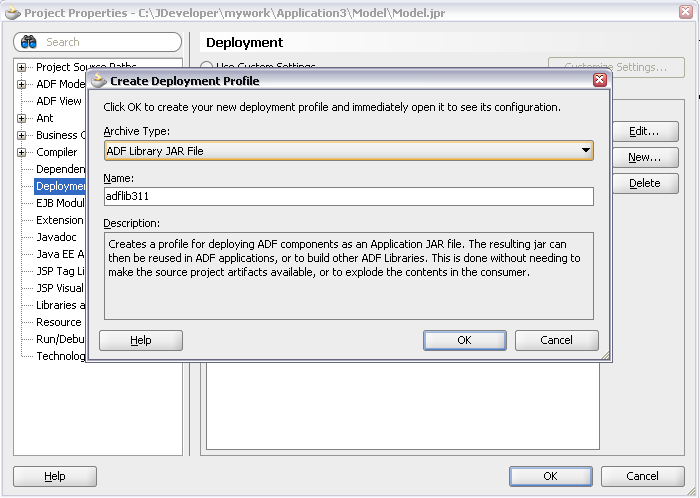

Whenever you create a deployment profile for the model project in ADF you wil select the ADF Library type rather an ordinary library type (java jar type)

Both act as a library archive supporting jar and zip files

What is the difference then?

  • ADF library differ in a way that it behaves. It has the uniqueness of automatically pulling in the dependent jar files that is referred by any of the files and written in to the manifest files. The dependent libraries that are needed at runtime is pulled n by Jdeveloper as secondary imports.
  • The library exposes the meta data files likes task flows allowing the user to drag and drop in their files as dependent files which normal jar will not expose and support. The dropped taskflow will be added as a region in the page.
